What Is a Storage Area Network (SAN)?

Ever wondered how hospitals access patient records in seconds, banks process millions of transactions, or cloud providers keep services running around the clock?

Chances are, a Storage Area Network (SAN) has something to do with it.

Consider this guide your SAN cheat sheet: what it is, how it works, what makes it valuable, and how it compares to the alternatives.

What Is a Storage Area Network (SAN)?

A Storage Area Network (SAN) is purpose-built for one thing: giving applications fast, reliable access to the data they depend on.

Instead of locking storage inside individual servers, a SAN creates a shared storage environment that multiple systems can access simultaneously.

Because storage traffic runs across its own dedicated network, it doesn't have to compete with everyday business traffic such as emails, video calls or web browsing.

The result is faster, more consistent access to data for the applications that rely on it.

To connected servers, that storage appears local, even though it may be housed elsewhere within the infrastructure.

Storage Area Network Definition

A SAN is a network designed specifically for storage, giving multiple servers access to the same centralised pool of data.

For businesses, this means less time spent managing storage, better use of resources and faster access to the data that keeps applications moving.

How Does a SAN Work?

A SAN sits between servers and storage devices.

Instead of connecting storage directly to each server, the SAN creates a dedicated network that links everything together.

Here's the basic process:

1. Applications request data.
2. Servers send storage requests through the SAN.
3. The SAN identifies where the data is stored.
4. Storage arrays deliver the data back to the server.
5. Applications receive the information almost instantly.

This helps keep data within easy reach, reducing delays and improving application performance.

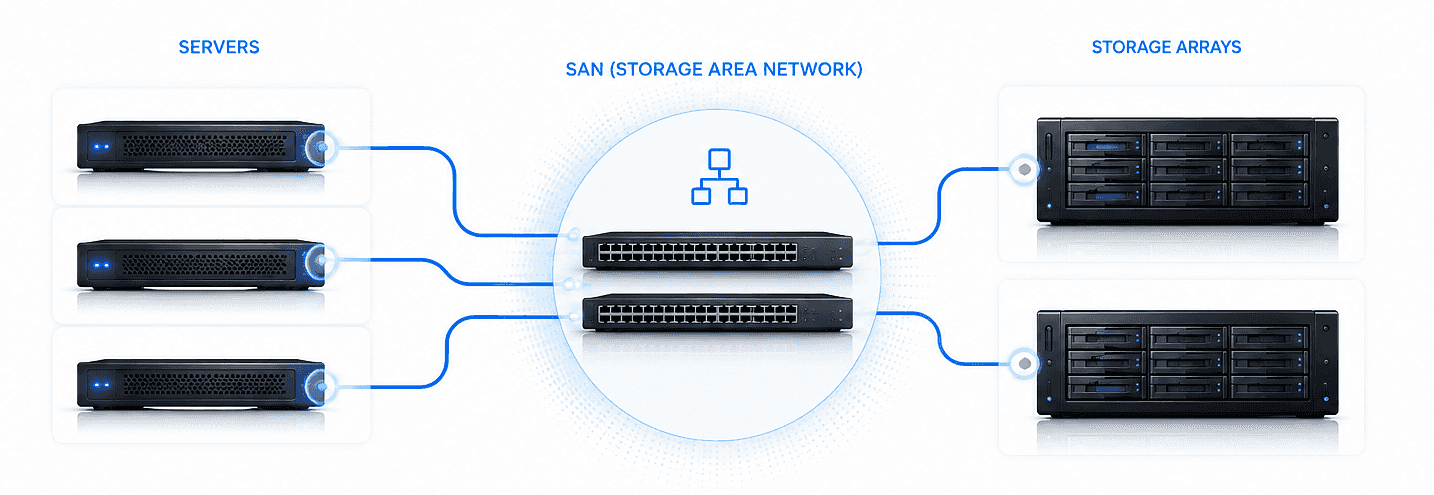

SAN Architecture Explained

Most SAN environments include four key components:

Servers

This is where applications and workloads run, pulling data from storage to keep day-to-day operations moving.

Storage Arrays

These are central storage systems containing hard drives, SSDs or NVMe storage.

SAN Switches

SAN switches serve as the connection point between servers and storage, helping data move where it's needed, when it's needed.

Connectivity Protocols

Protocols make sure everyone follows the same playbook when moving data around the SAN.

Common SAN protocols include:

• Fibre Channel (FC) – Purpose-built for SANs and widely regarded as the gold standard for high-performance storage networking.
• Fibre Channel over Ethernet (FCoE) – Helps reduce hardware complexity by carrying storage traffic across existing Ethernet networks.
• Internet Small Computer Systems Interface (iSCSI) – A practical option that uses familiar IP networking technology to connect servers and storage.
• NVMe over Fabrics (NVMe-oF) – Designed for environments where speed matters, helping data move between storage and applications with as little delay as possible.

Why Do Businesses Use SANs?

As data volumes grow, so do the demands placed on storage infrastructure.

A SAN helps organisations stay ahead by providing a centralised, scalable foundation that can support increasing workloads without compromising performance.

Here’s how.

Faster Performance

For some applications, every second counts.

By providing fast, consistent access to storage, a SAN helps support workloads where delays can have a real impact, including:

• Databases
• Virtualisation platforms
• ERP systems
• Financial applications
• High-volume transaction processing

Centralised Management

Rather than managing storage separately across multiple servers, administrators can manage everything from a central location.

A SAN also makes life easier for IT teams by simplifying:

• Capacity planning
• Monitoring
• Provisioning
• Backup management

Improved Availability

Hardware failures happen.

A well-designed SAN is prepared for them, with redundant components ready to take over and keep data available when it's needed most.

Scalability

Growth doesn't always happen in neat, predictable stages.

A SAN allows organisations to add storage as needed, without having to overhaul the rest of their infrastructure.

Better Resource Utilisation

Rather than being tied to a specific server, storage can be assigned where demand is highest.

This helps ensure available capacity is put to good use across the environment.

SAN vs NAS: What's the Difference?

Storage Area Networks (SANs) and Network Attached Storage (NAS) are two of the most common approaches to shared storage.

While they may seem similar on the surface, they differ significantly in how data is accessed, managed and delivered.

In simple terms:

SANs give servers access to raw storage that behaves like a local disk, whereas NAS provides shared files and folders that users can access over a network.

Large enterprises often use both technologies together.

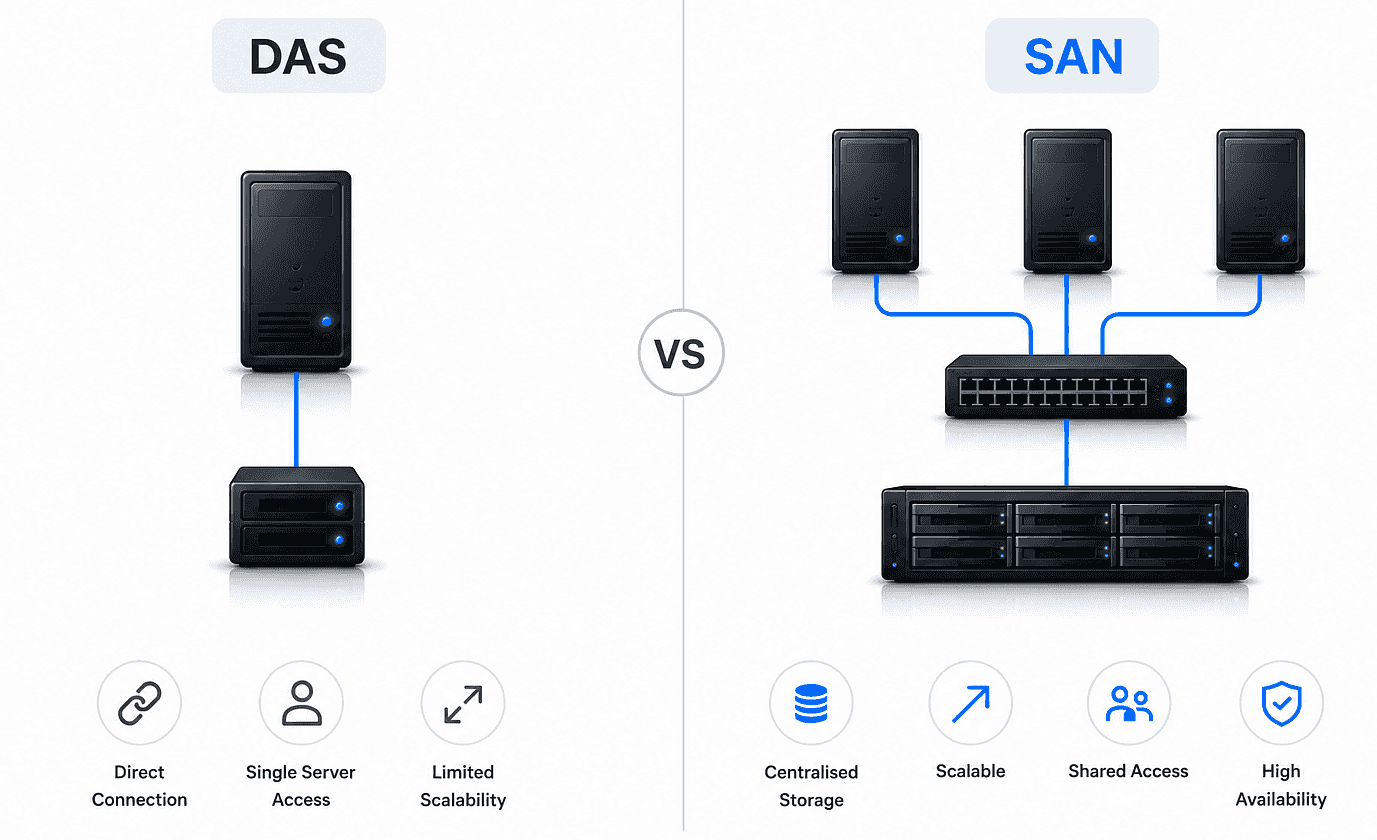

SAN vs DAS

Direct Attached Storage (DAS) is storage connected directly to a server without a network in between.

Examples include:

• Internal hard drives
• External storage arrays
• USB storage devices

Compared to DAS, a SAN offers:

• Centralised storage
• Greater scalability
• Shared access across multiple servers
• Higher availability

DAS can be a great fit for smaller environments, but as infrastructure expands, managing storage on a server-by-server basis often becomes less efficient and more difficult to scale.

Types of Storage Area Networks

Not all SANs are cut from the same fibre. Let's explore the different types.

Fibre Channel SAN

Traditionally the gold standard for enterprise storage.

Benefits include:

• Extremely low latency
• High reliability
• Dedicated infrastructure
• Consistent performance

Common in large data centres and mission-critical environments.

iSCSI SAN

Uses standard IP networking to transport storage traffic.

Benefits include:

• Lower deployment costs
• Easier implementation
• Utilises existing Ethernet infrastructure

Popular with small and medium-sized businesses.

Fibre Channel over Ethernet (FCoE)

Why run two networks when one can do the job?

FCoE combines storage and network traffic on a shared Ethernet infrastructure, helping reduce complexity and hardware requirements.

NVMe over Fabrics (NVMe-oF)

The new kid on the SAN block, designed to maximise the speed and responsiveness of NVMe-based storage.

Benefits include:

• Ultra-low latency
• Faster data access
• Better SSD utilisation

Increasingly adopted in high-performance enterprise environments.

Key SAN Components

The easiest way to understand a SAN is to start with the building blocks that power it.

Host Bus Adapters (HBAs)

Specialised network adapters installed in servers.

They connect servers to the SAN and handle storage communications.

SAN Switches

The traffic controllers of the storage network.

They route data efficiently between storage resources and connected servers.

Storage Controllers

These manage how data is written, read and protected across storage arrays.

Storage Arrays

This is where your data lives, whether on hard drives, SSDs or high-performance NVMe storage.

Modern arrays often combine:

• SSDs
• NVMe drives
• Hybrid storage tiers
• Data reduction technologies

SAN Benefits for Virtualisation

A virtual machine can move between hosts in seconds but only if the storage moves with it.

SANs provide the shared storage foundation that enables many advanced virtualisation features.

Solutions such as VMware, Hyper-V and enterprise cloud environments rely on SANs to deliver capabilities such as:

• Shared Storage: Multiple hosts can access the same virtual machine data.
• Live Migration: Virtual machines can move between physical hosts with little to no disruption to users or applications.
• High Availability: Workloads can fail over automatically if hardware issues occur.
• Simplified Management: Storage can be provisioned centrally across virtualised environments.

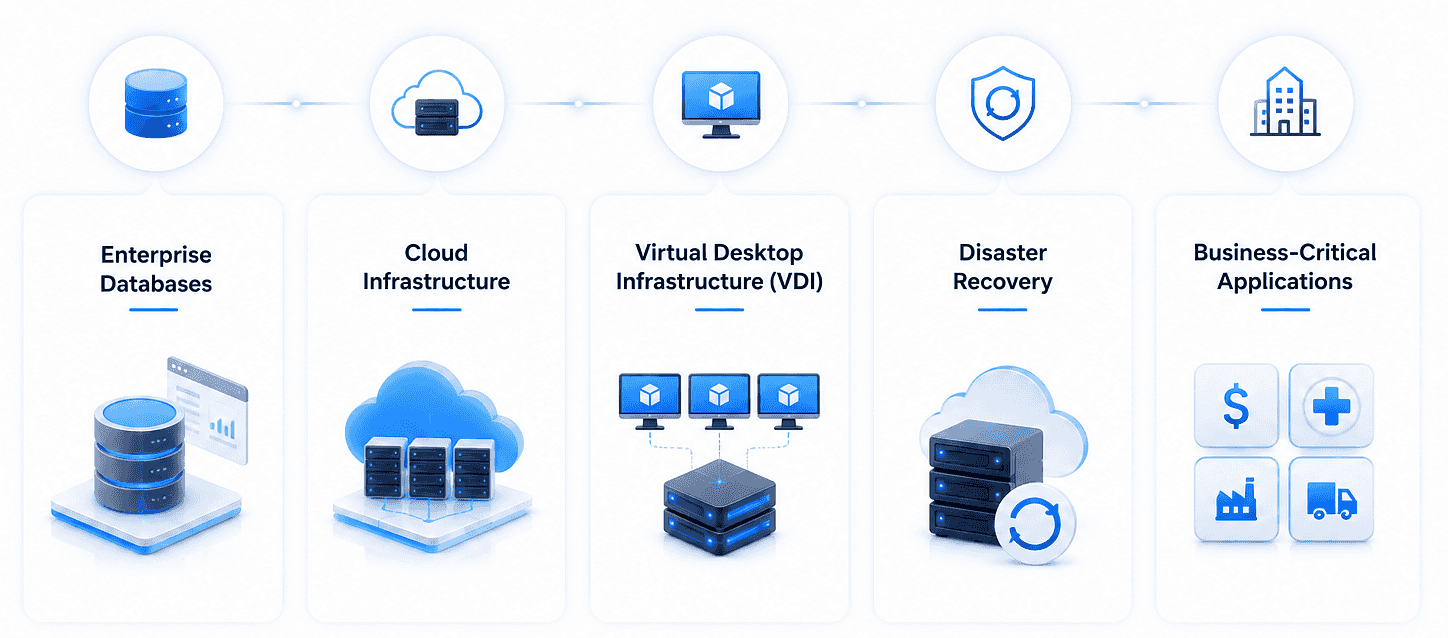

Common SAN Use Cases

• Enterprise Databases: A database is only as fast as the data it can access. SANs help make sure storage isn't the thing slowing it down.
• Cloud Infrastructure: Private and hybrid cloud environments often rely on SAN storage to support multiple services and users.
• Virtual Desktop Infrastructure (VDI): Thousands of desktop sessions can access centralised storage simultaneously.
• Disaster Recovery: SAN replication capabilities help organisations recover quickly following outages or data loss events.
• Business-Critical Applications: Applications supporting finance, healthcare, manufacturing and logistics frequently rely on SAN infrastructure.

SAN Security Considerations

With great storage comes great responsibility. Because SANs often store business-critical information, protecting them is every bit as important as optimising their performance.

Common security measures include:

• Access controls
• Authentication mechanisms
• Data encryption
• Network segmentation
• Multi-factor authentication
• Continuous monitoring

Modern SAN environments are no longer secured in isolation. Instead, they form part of a broader cybersecurity strategy designed to protect data wherever it resides.

For a deeper dive into staying safe online and understanding today's threat landscape, take a look at our Internet Safety and Cyber Threats Explained guides.

Challenges of Storage Area Networks

While SANs offer significant benefits, they're not always the right solution for every environment.

As with any technology investment, it's important to weigh the advantages against the operational and financial requirements.

• Higher Costs: Enterprise-grade hardware, software and specialist infrastructure can result in higher upfront and ongoing costs.
• Greater Complexity: SAN environments require careful planning, configuration and ongoing management to ensure optimal performance and reliability.
• Specialist Skills: Deploying and maintaining a SAN often requires expertise in storage networking, performance optimisation and data management.

For organisations with simpler storage requirements, alternatives such as Network Attached Storage (NAS) or cloud-based storage solutions may provide a more cost-effective and easier-to-manage option.

The Future of SAN Technology

The world of enterprise storage never stands still.

Emerging technologies are making SANs faster, smarter and more flexible than ever before, helping organisations keep pace with growing workloads and rising data demands.

Current trends include:

• NVMe adoption
• Software-defined storage
• AI-powered infrastructure management
• Hybrid cloud integration
• Storage automation
• Increased use of flash storage

As businesses continue to rely on data-driven operations, SANs are expected to play an increasingly important role in delivering the performance, resilience and scalability modern internet usage demands.

Final Thoughts

The amount of data organisations manage today is only heading in one direction: up.

SANs provide a practical way to keep pace, helping businesses store, access and protect data without sacrificing performance.

Frequently Asked Questions

What is a SAN in Simple Terms?

A SAN is a dedicated network that connects servers to shared storage, allowing applications to access data quickly and efficiently.

What Does SAN Stand For?

SAN stands for Storage Area Network.

Is SAN Better than NAS?

Neither is universally better.

SAN is typically preferred for high-performance enterprise workloads, while NAS is often better suited to file sharing and collaboration.

What is SAN Used For?

SANs are commonly used for:

• Databases
• Virtualisation
• Cloud infrastructure
• Disaster recovery
• Enterprise applications
• Large-scale data storage

What Is a Network SAN?

A Network SAN is a specialised storage network designed to move large amounts of data efficiently between servers and storage devices.

Instead of scattering storage across multiple servers, a SAN brings everything together into a shared environment that's easier to manage, scale and protect.
